MULTIPORT SLEEVED PLUG VALVES

FluoroSeal® 3-Way Multiport Sleeved Plug Valves provide a wide range of flow control with a compact and robust design.

3-WAY MULTIPORT PLUG VALVE
Class 150/300/600 • PN 16 & PN 40

FluoroSeal® non-lubricated 3-way multiport sleeved plug valves incorporate all the same design features as the FluoroSeal 2-way valve. These provide the user with tight long lasting reliable shut-off, excellent emissions resistance, easy operation, and both stem seal and in-line seal adjustment.

KEY FEATURES

  • Bottom entry design standard
  • Multiple plug porting allows for easy flow control
  • Low emission stem seal
  • Cavity free and maintenance free
  • Non-lubricated
  • Firesafe per API 607 – Optional

FLOW ARRANGEMENTS

Flow is indicated by the arrow(s). When rotating plugs FA2, FA3 or FA4 a transflow condition exists at all times. Only position B in plugs FA1 and FA5 will provide a complete shutoff condition. Valves will be supplied with quarter-turn (90°) operators as standard. Should a half-turn (180°) operator be needed, please specify. ANSI/ASME class 600 lbs available upon request.



PLUG TYPE FA1

Position A − 0°
Position A − 0°
Position B − 90°
Position B − 90°
Position C − 180°
Position C − 180°

PLUG TYPE FA2

Position A − 0°
Position A − 0°
Position B − 90°
Position B − 90°

PLUG TYPE FA3

Position A − 0°
Position A − 0°
Position B − 90°
Position B − 90°
Position C − 180°
Position C − 180°

PLUG TYPE FA4

Position A − 0°
Position A − 0°
Position B − 90°
Position B − 90°
Position C − 180°
Position C − 180°

PLUG TYPE FA5

Position A − 0°
Position A − 0°
Position B − 90°
Position B − 90°

FLOW ARRANGEMENTS

Flow is indicated by the arrow(s). When rotating plugs FA2, FA3 or FA4 a transflow condition exists at all times. Only position B in plugs FA1 and FA5 will provide a complete shutoff condition. Valves will be supplied with quarter-turn (90°) operators as standard. Should a half-turn (180°) operator be needed, please specify. ANSI/ASME class 600 lbs available upon request.

PLUG TYPE FA1

Position A − 0°
Position A − 0°
Position B − 90°
Position B − 90°
Position C − 180°
Position C − 180°

PLUG TYPE FA2

Position A − 0°
Position A − 0°
Position B − 90°
Position B − 90°

PLUG TYPE FA3

Position A − 0°
Position A − 0°
Position B − 90°
Position B − 90°
Position C − 180°
Position C − 180°

PLUG TYPE FA4

Position A − 0°
Position A − 0°
Position B − 90°
Position B − 90°
Position C − 180°
Position C − 180°

PLUG TYPE FA5

Position A − 0°
Position A − 0°
Position B − 90°
Position B − 90°
Want to learn more?
Info request

ADDITIONAL CONFIGURATIONS

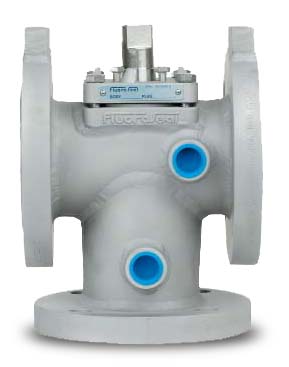

Multiport with Full Welded Jacket

APPLICATIONS

Typical applications for FluoroSeal® Multiport Sleeved Plug Valves include molten sulfur, pitch, tar, asphalt, resins, polymers, plastics, and any other process media which needs to be heated to keep it in the liquid state.

Mining

Oil

Petrochemical

Chemical

Food & Beverage

Gas

Power Generation

Pharmaceutical

Refining

Water

Pulp & Paper

Steel Making

Mineral

Fertilizers

Typical applications for FluoroSeal® Multiport Sleeved Plug Valves include mixing, blending, and isolation as required.
